Precision Micro Lens Manufacturer

Ultra-small PCV & PCX lenses for ureteroscopes and ultra-thin endoscopes — centration ≤1′, diameter tolerance -0.005 to -0.02mm, every batch with full COA.

Mass production for medical OEM · Φ0.33mm – Φ3.8mm · NDA before you send anything

🏭15+ Years Manufacturing
⚡Quote within 24 Hours
🔬Free Sample Evaluation & COA

ISO 9001:2015  |  NDA Protected  |  COA Per Batch  |  MOQ 10+

Send Drawing / RFQ

About HSD Optical — Micro Lens Division

We manufacture ultra-small precision micro lenses — PCV and PCX types — for ureteroscopes, ultra-thin rigid endoscopes, and other minimally invasive optical systems. Our lenses are produced to your exact drawings, with centration ≤1′ and diameter tolerance -0.005 to -0.02mm.

We supply both uncoated blanks for coating laboratories and finished AR-coated lenses for OEM assemblers. Full COA per batch, NDA protected, engineer-to-engineer review before production starts.

Serving: Coating Laboratories • OEM Assemblers • Medical Device Manufacturers

We are NOT a general repair parts supplier.

Core Product: Micro Lenses (PCV & PCX)

Ultra-small precision lenses manufactured strictly to your drawings

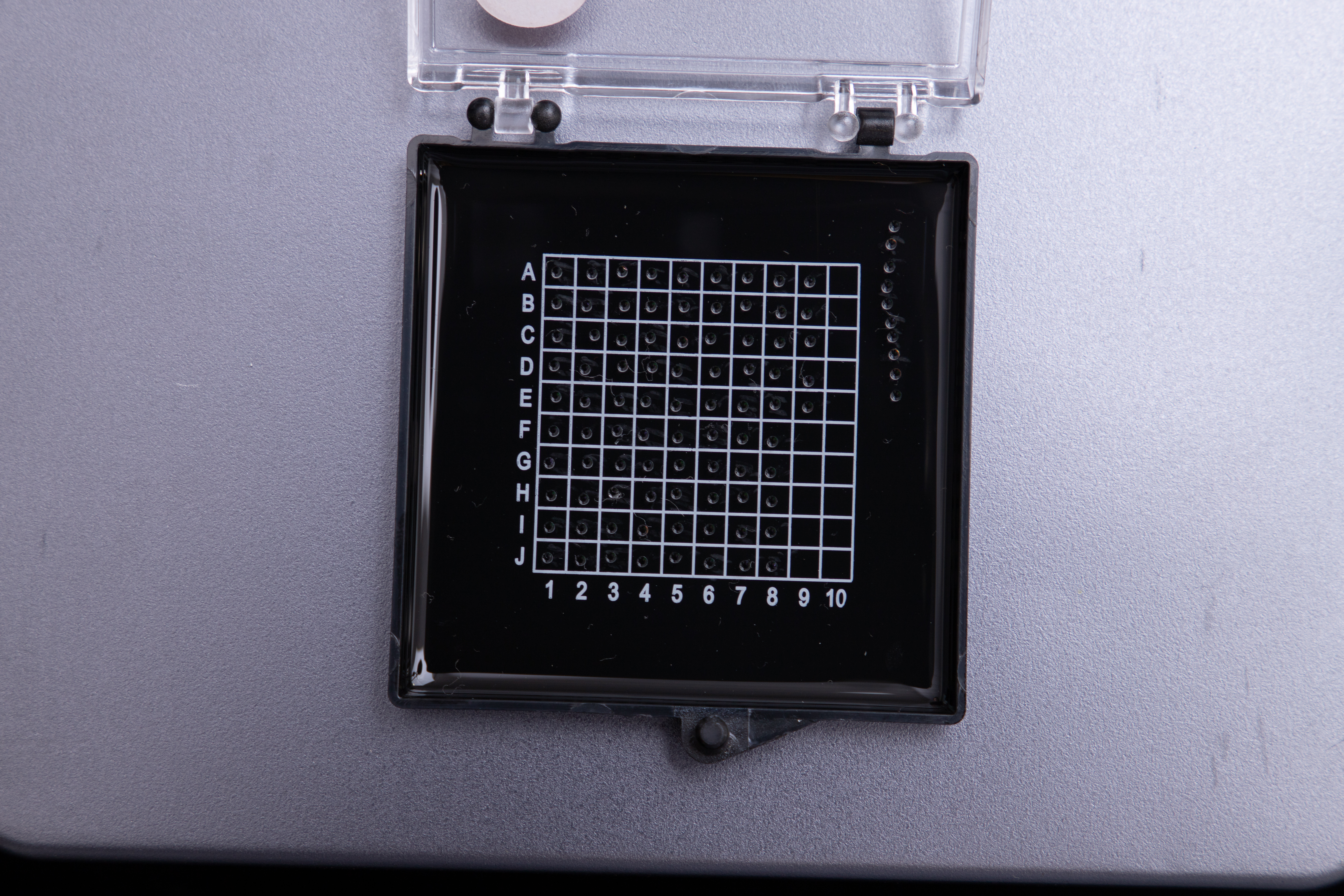

Micro lens tray packaging — 100 pcs per tray, individually seated
100 pcs per tray — individually seated, traceable

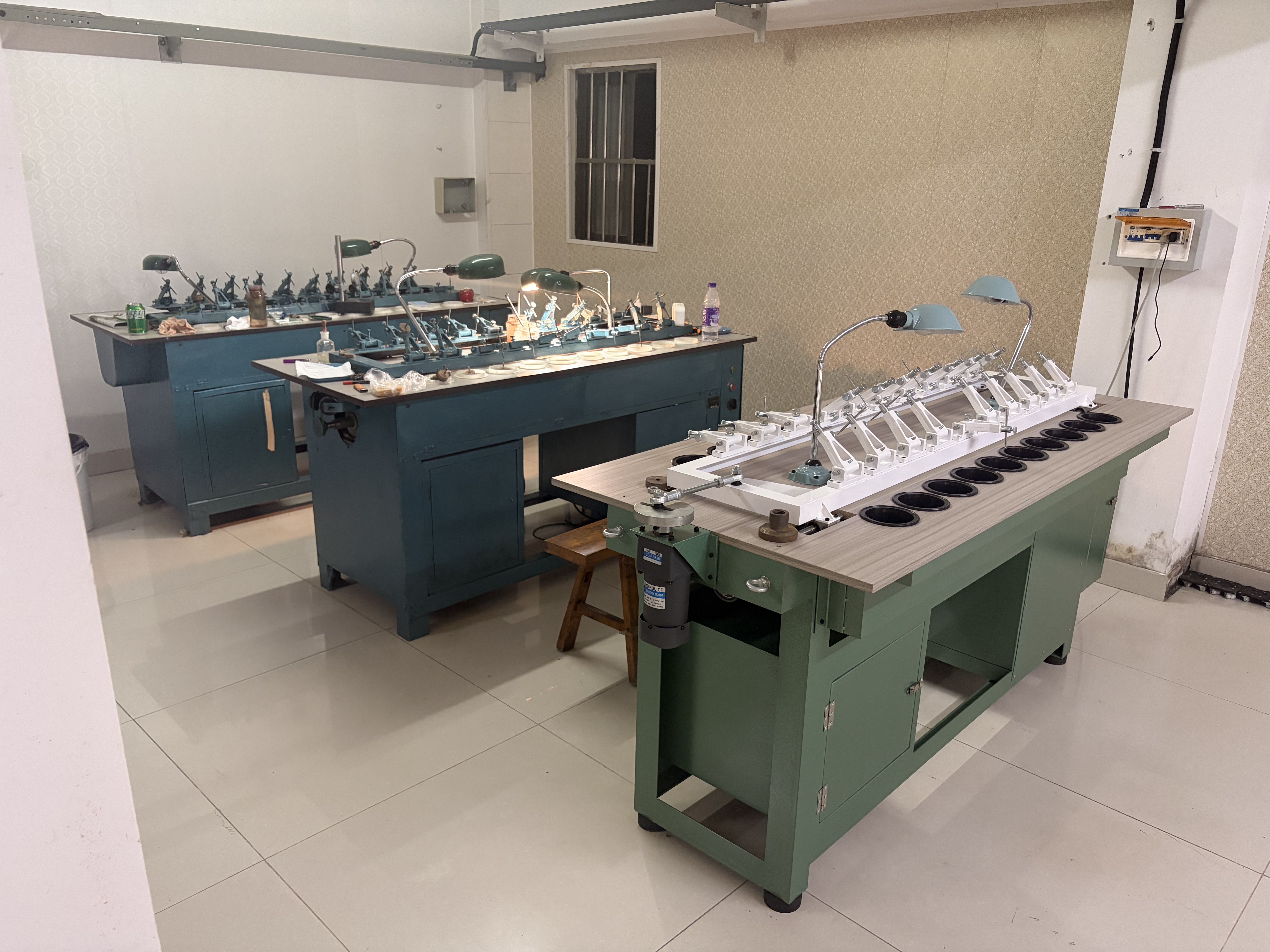

Micro lens polishing workshop — precision grinding & centering
Dedicated micro lens polishing & centering line
⌀ 0.33 – 3.8 mm Diameter tol. -0.005 to -0.02 mm Thickness tol. ±0.01 to ±0.02 mm Centration ≤ 1′ Surface quality 20/10 – 40/20 Surface accuracy 1/8λ – 1/4λ Types: PCV & PCX Custom radius R on drawing

Optical Glass Materials

H-LAK1, H-LAK52, H-LAK10L, H-ZF6, H-ZF7, H-ZK1, H-ZK3, H-K2, H-K9L, H-ZLAF1, H-ZLAF68, H-ZLAF68B, H-ZLAF53, H-ZLAF69, H-LAF10L, H-QK3, H-ZF52A, JGS1, JGS and more. Full material certs provided per batch.

Coating Options

Uncoated blanks available for coating laboratories. AR coating 400–700nm standard for OEM assemblers. Custom wavelengths upon request. Both CV and CX surfaces coatable.

Surface & Durability

Surface quality 20/10 to 40/20 scratch-dig. Surface accuracy 1/8λ to 1/4λ. Designed for medical-grade cleaning protocols. Compatible with ureteroscope assembly requirements.

Ongoing Medical OEM Projects

Approved OEM projects for micro lens supply. Produced to customer drawings, NDA protected.

🇧🇷

Micro Lens Φ1.0mm — Brazil Medical OEM

✔ Application: Ureteroscope imaging system
✔ Type: PCX / PCV custom to drawing
✔ Centration ≤ 1′
✔ COA per batch, full traceability
✔ NDA protected
🌍

Custom Micro Lenses — OEM Assemblers Worldwide

✔ Φ0.33mm – Φ3.8mm range
✔ Uncoated blanks or finished lenses
✔ Multiple glass materials available
✔ Engineer-to-engineer DFM review
✔ MOQ from 10 pieces
All projects under NDA. Drawings & parameters are confidential.

Standard Micro Lens Specifications

0 items
No. Size (Φ×L mm) R (mm) Type Material
📐 Don't see your size? We manufacture to your exact drawing. All custom work is covered by NDA. Send us your drawing →
Capacity & Lead Time
Order TypeMonthly CapacityStandard Lead TimeNotes
Standard sizes (in-stock)3,000+ pcs / month3–7 daysFrom existing inventory; COA included
Custom samplingDedicated line7–15 daysEngineer-to-engineer DFM review included
Batch production5,000+ pcs / month15–30 daysAnnual framework contracts supported
Large-volume OEMScalable upon agreementTo be discussedDedicated production line available

Why Choose HSD Micro Lenses

Ultra-small capability – Down to Φ0.33mm. Consistent centration ≤1′ at micro scale.
Two supply modes – Uncoated blanks for coating labs, or finished AR-coated lenses for OEM assemblers. One supplier, full flexibility.
ISO 9001:2015 Certified – Full COA per batch: dimensions, centration, surface quality, transmittance. Batch traceability for audit compliance.
Engineer-to-Engineer DFM Review – We review your drawings for manufacturability and optical compatibility before production starts.
Fast response – 24h quotation, MOQ from 10 pieces. Sampling 7–15 days.
Quality Guarantee – Defective products replaced free of charge. We stand behind every batch.
100% custom – Any radius R, any glass material from our catalog. Produced exactly to your drawing.
Reliable delivery – Long-term project support. Annual framework contracts welcomed.
Global OEM Supply
Supplying micro lenses to medical OEM assemblers in Brazil, Europe and Asia
Repeat Orders
Monthly recurring orders from multiple medical device customers
Full Traceability
Every batch ships with complete dimensional, material & transmittance COA

Certification & Quality Assurance

ISO 9001:2015 Certified
Professional optical workshop • Temperature & humidity controlled • Full inspection equipment
Full dimensional report per batch Centration ≤ 1 arcmin Diameter tolerance -0.005 to -0.02 mm Surface quality 20/10 – 40/20 Transmittance measured Batch traceability
ISO 13485 certification in progress. Currently serving medical OEM customers under ISO 9001:2015 with full batch COA and traceability.

Send Drawing / Request Quotation

Tell us your micro lens requirements and we'll respond within 24 hours

🔒 NDA Protected — Your drawings stay yours.
All drawings, specs, and optical data you share with us are treated as strictly confidential. We'll sign your NDA or ours before you send anything sensitive.
